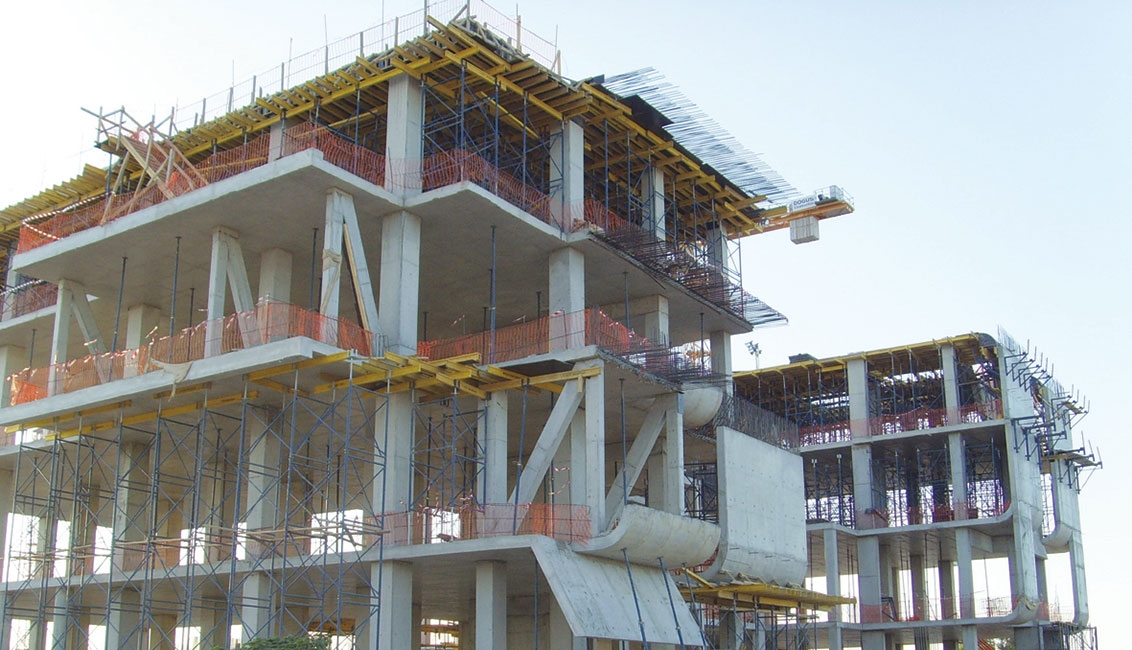

Al-Tahadi University project, which has 220.000 m2 of construction area in total with its 8 faculties and 5 service buildings, is located in Sirte city of Libya.

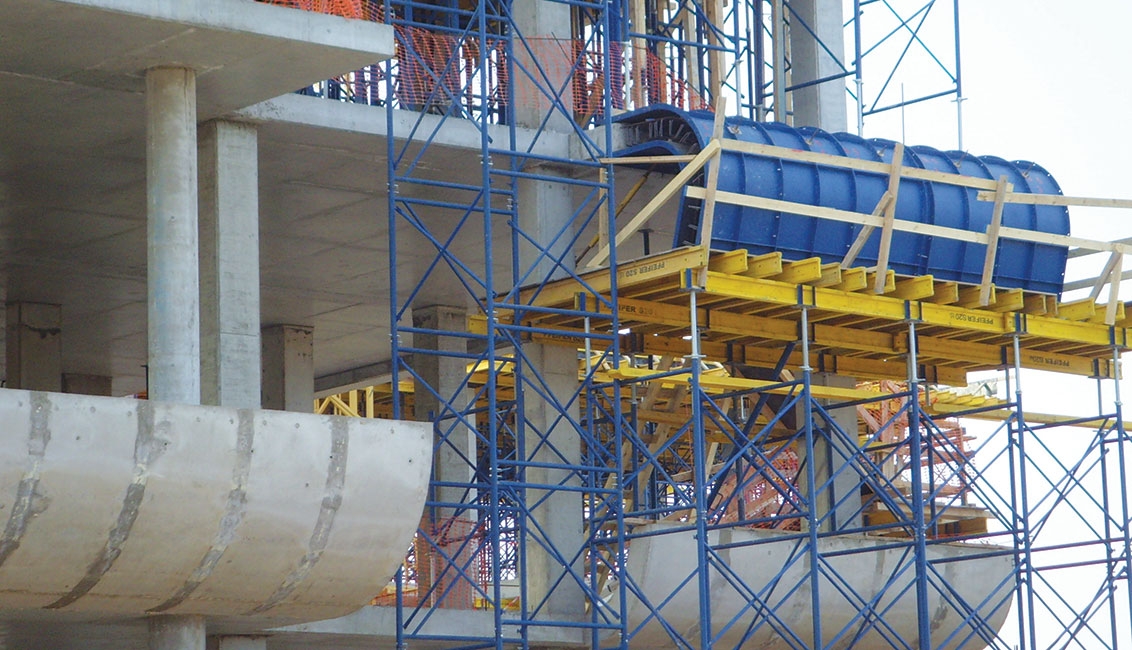

For curvilinear parameters were used galvanized panel formworks. In order to support those galvanized formworks used, HD 150 tower system was preferred.

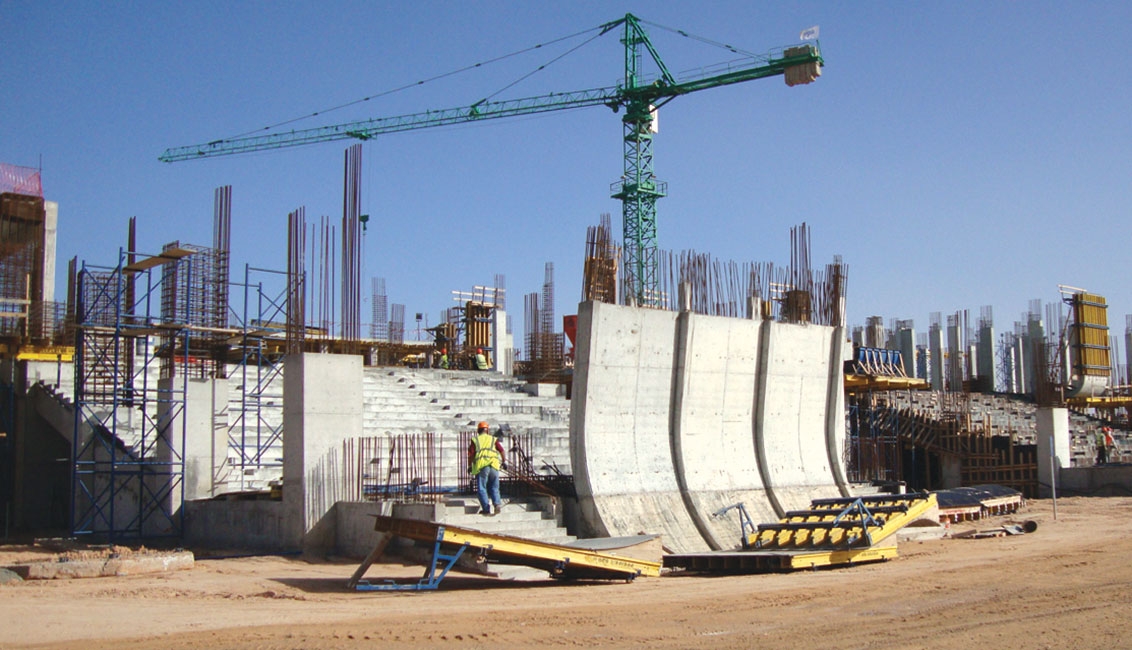

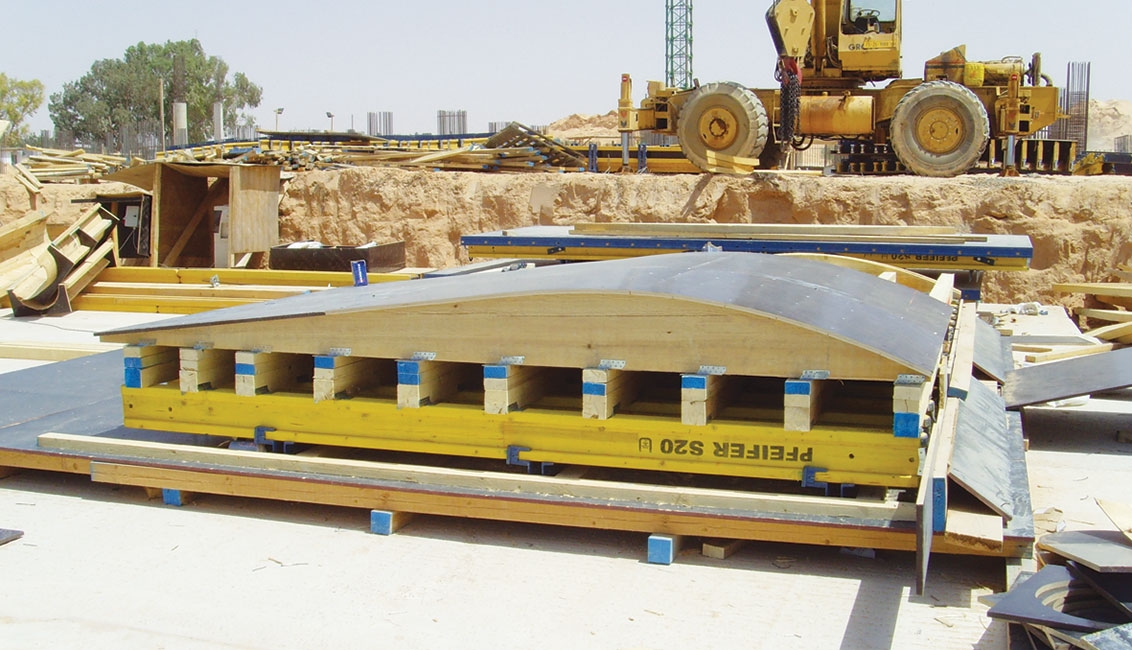

The walls which had curvature on vertical direction were sorted out with template plank application through Inteva system.

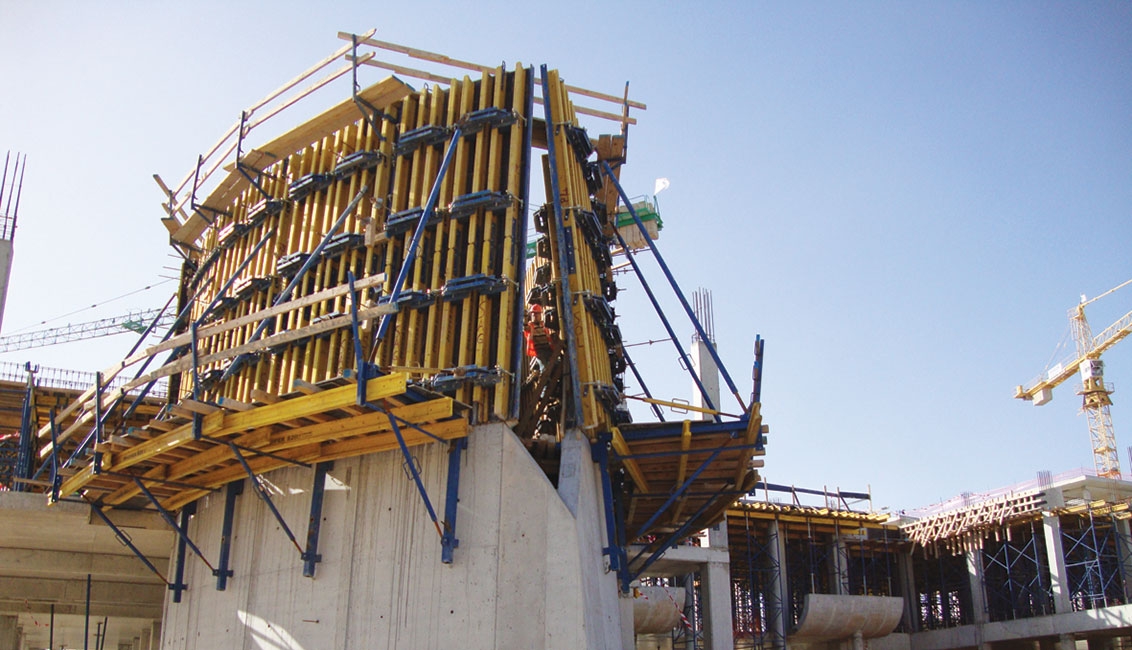

The walls in the form of prow, repeating many times in the project, were sorted out with ADP adjustable circular formwork system. In addition to the curvature throughout plan view, a vertical direction angle was a matter of case. And that necessiated the curvature of formwork to be changed on every casting. That application was performed with ADP system successfully.
