Varyap – Meridian Project received first prizes in “Best Real Estate Project” and “Best Smart City Project” on four separate international platforms among which there was the most prestigious real estate contest International Property Awards 2009 which is known as “Oscars of Real Estates”.
The project whose construction area is 374.000 m2 in total consists of five tower blocks, whose numbers of floor vary from 20 to 61 storeys, and three low-rise commercial block. Within the scope of the project, there are 1500 housings, a business center with 50.000m2 of rental space, a 20.000 m2 of office building, a 5 star hotel whose operation will be given to an international brand, a convention center and trade blocs.

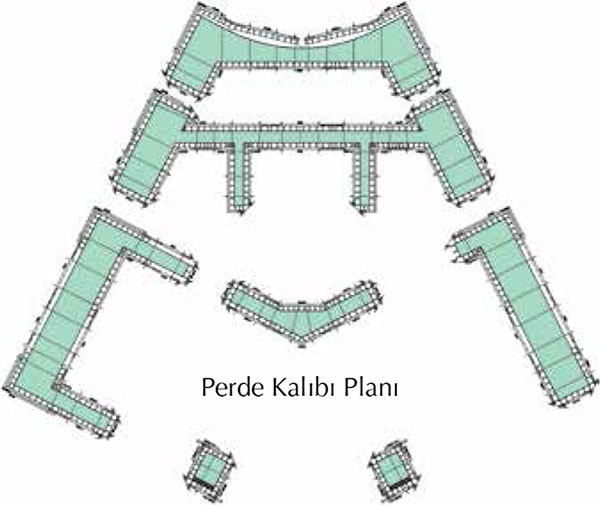

The highest block of the project is A Block with a total of 61-storey. The core wall of this block was constructed with İNTEVA large area panel system. The core thickness of block was preliminarily 150 cm and then it changed to 130 cm and 100 cm respectively as the elevation of the building got higher. With successful designing of İNTEK Formwork project department, İNTEVA system was adapted to everchanging wall thickness. Curvilinear surfaces of the wall were sorted out with template beams which were interposed between plywood and H20 wooden beams. After the first few floors; iron, formwork and concrete manufacturing of core wall with 470 m2 area was completed in 1 day.

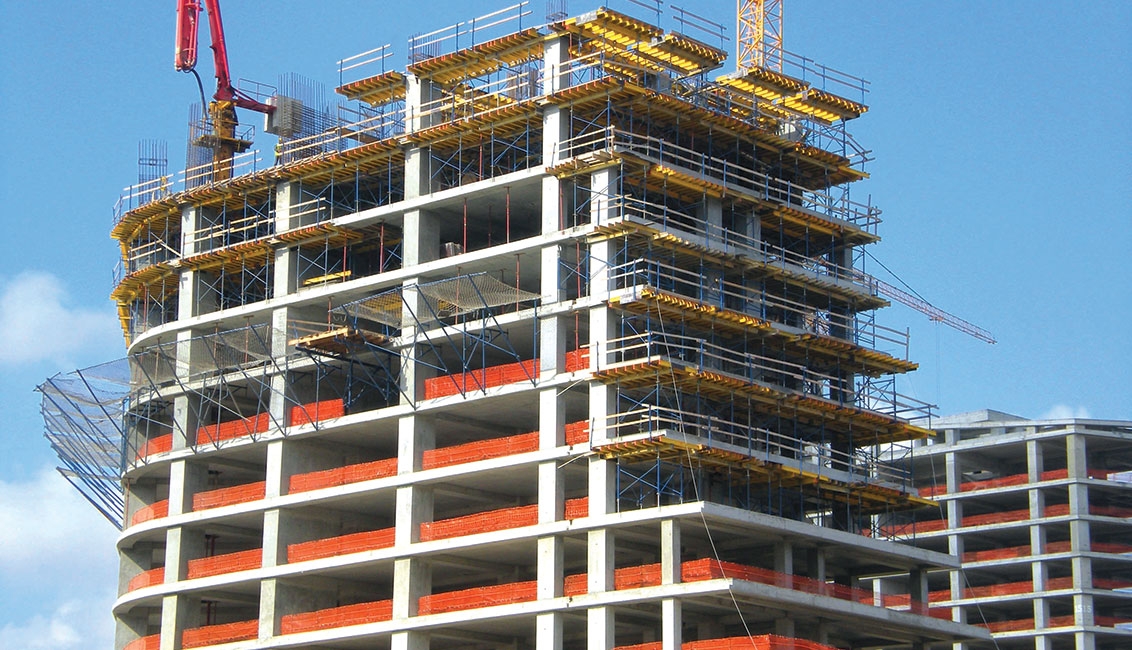

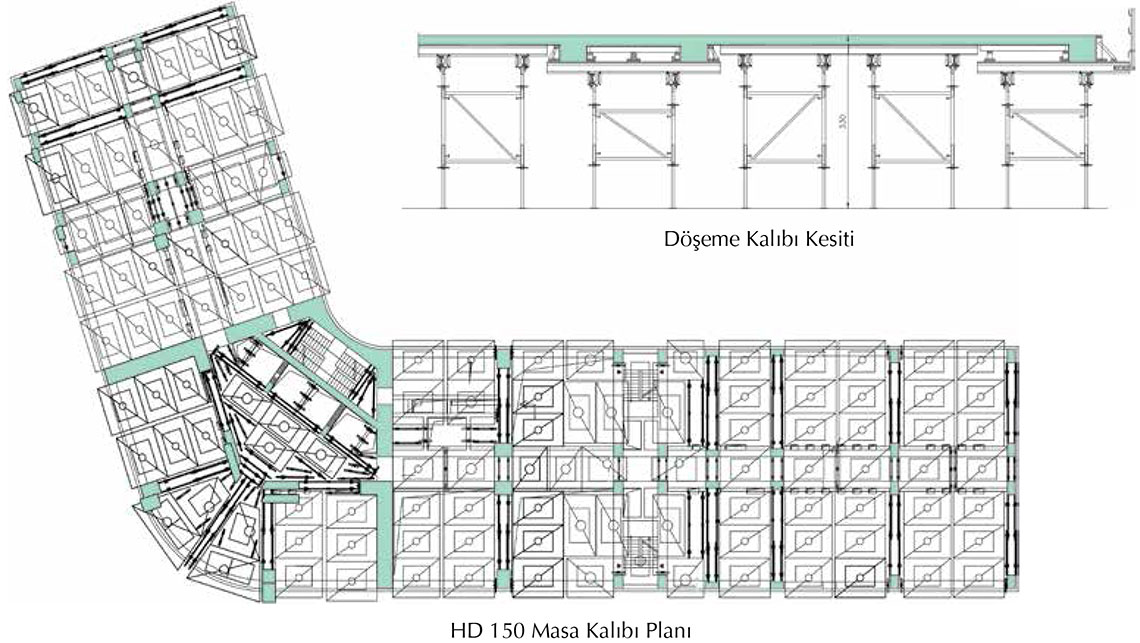

“HD 150 Tableform System” was used on slab formwork. If a project is appropriate as a form, there are a large number of floors identically repeating the same and tower crane has enough time, tableform system is a distinguishing solution. This system provides not only enormous labour productivity but also tremendous economical benefit by preventing corrosion of formwork material.
